Extra Extra-Large Tilt Mount
MODEL - MW250PIT106
Fits TVs up to 115"
Up to 250lbs.

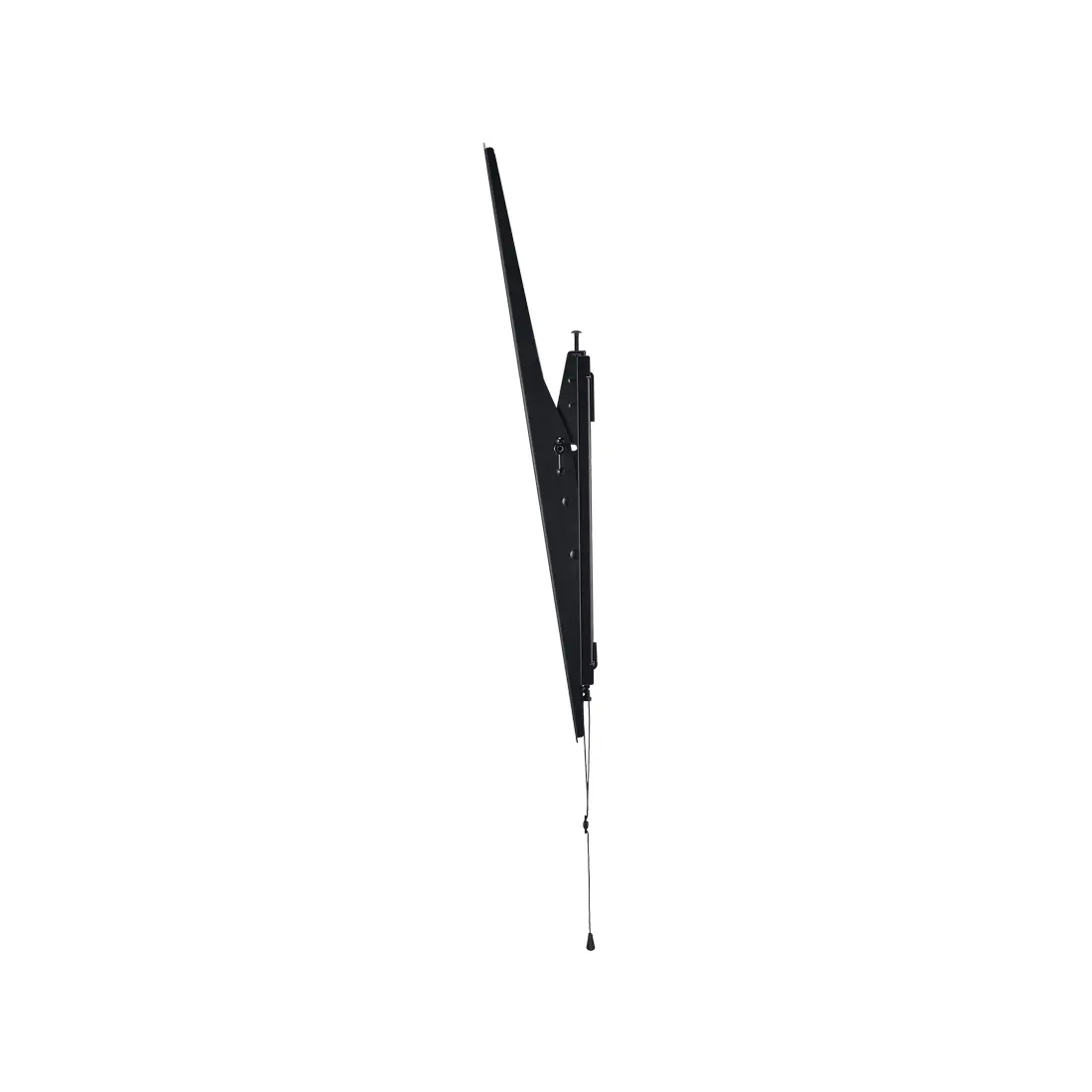

'-7.5° to +8° Tilt
2.45" Profile
VESA: 200 x 100mm to 1000 x 600mm
About This Product

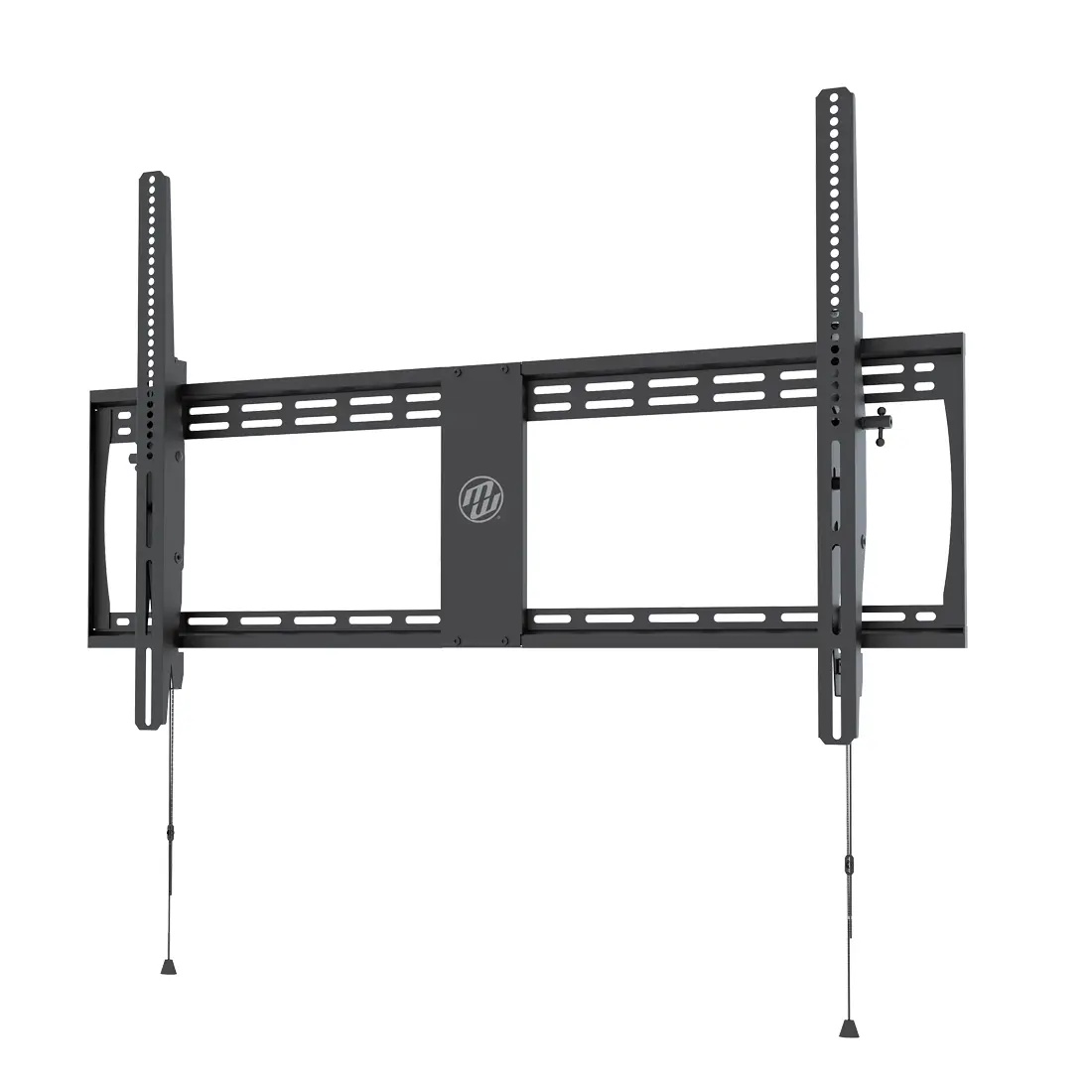

The MW MOUNTS® XXL MW250PIT106 is a low-profile tilt wall mount for TVs up to 115” and up to 250 lbs. The MW250PIT106 tilt mount has been designed for quick, easy, and accurate installation (all necessary hardware included). This mount allows up to -7.5° and +8° of tilt, includes an easy to use magnetic security pull tabs so that the TV is mounted right the first time.
Product Features
-
Easy Attach™ feature allows TV panel and Vertical Rails to be safely & quickly connected to Mount
-
3-way tilt tensioner allows you to use a hex key, your fingers, or the 1/2″ socket you use to mount the wall plate
-
0.5″ Post-installation height leveling adjustment
-
Wall mounting: 16″ or 24″ double wood stud or solid concrete wall with four points of attachment
-
Wall plate: One piece for easy installation
-
Cold-rolled steel for quality and strength
-
Grade 5 wall hardware and spacers included
-
5 Year Warranty
-
cUL Listed
Product Installation
New installation videos are currently being produced. We apologize if there is no video below, a video will be added as soon as it is available.
Product Specs
VESA Standard Compatibility (Width x Height in mm):
- 200 x 100
- 200 x 200
- 300 x 200
- 400 x 200
- 300 x 300
- 400 x 300
- 400 x 400
- 600 x 400
- 700 x 400
- 800 x 400
- 800 x 500
- 800 x 600
- 1000 x 600
Maximum VESA Mounting Configuration:
1000mm x 600mm
Screen Size Range:
65″ – 115″
Maximum TV Weight:
250lbs / 113.4kg
Product Dimensions (W x H x D):
43.5″ x 26.8″ x 2.45″
Mounting Profile:
2.45″
Tools Required For Installation
